WNS Series Oil/Gas Fired steam BoilerWNS Series Oil/Gas Fired steam BoilerWNS Series Oil/Gas Fired steam Boiler

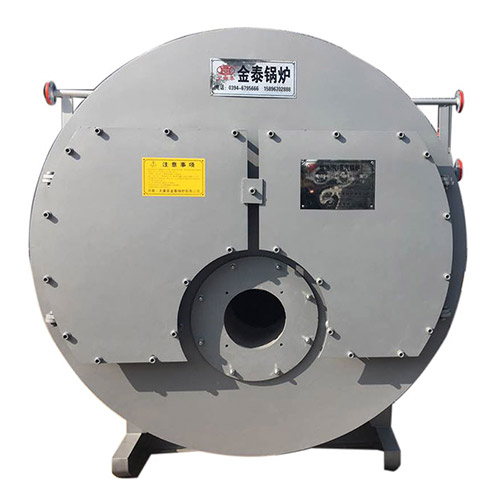

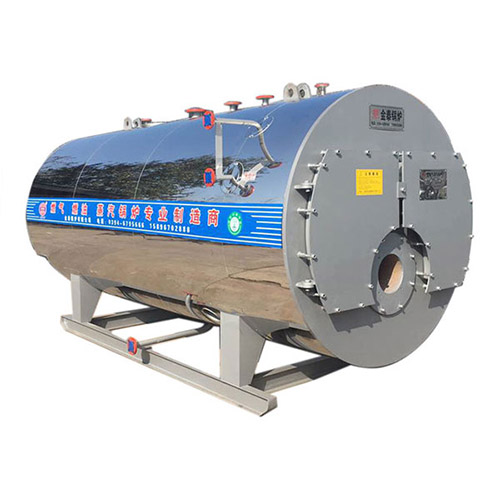

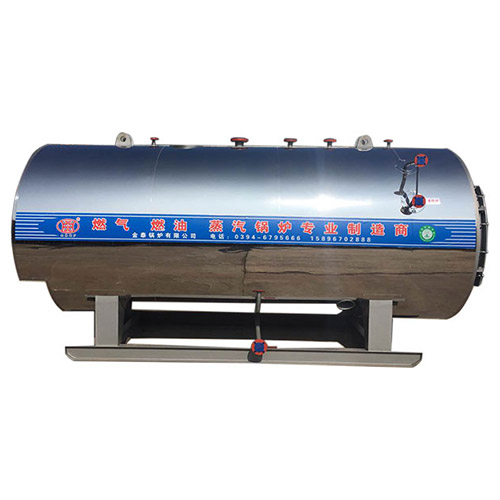

WNS Series Oil/Gas Fired steam Boiler

Brief Intro:

WNS boiler is a safe and high efficiency (98%) heating equipment with high automation, it is fast assemble boiler with flue gas three pass and wet back structure, widely used for industrial production.

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

Send E-mailGet Price
Description

Brief Intro:

WNS boiler is a safe and high efficiency (98%) heating equipment with high automation, it is fast assemble boiler with flue gas three pass and wet back structure, widely used for industrial production.

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.



Application:

As the WNS series oil gas fired boiler has the characteristics of compact structure,convenient installation, safe operation, low pollution and low noise, it is widely used for industry production and processing, such as textile mill, medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, moreover, it could be used for central heating in enterprise, hotel, hospital, civil architecture, etc.



High thermal efficiency and lower cost

(a) Adopts advanced corrugated furnace and the smoke tube adopts thread structure to increase heat transfer area and heat transfer effectiveness, boiler thermal efficiency.

(b) Tail with flue gas condensing recovery device to control the exhaust temperature effectively, boiler thermal efficiency;

(c) Adopts internationally renowned brand burner (BALTUR, WEISHAUPT, RIELLO) and water supply with continuous electric adjustment to achieve high thermal efficiency.



High reliability, low maintenance cost

The smoke room of the boiler adopts water-cooled wet-back structure with butt weld , 100% water jacket fire overall design and high temperature flue gas is water space package, which is a good choice to solve the smoke room cooling and sealing. This design avoids the frequent maintenance work of the front and rear smoke boxes, and greatly reduces the boiler accident and maintenance workload to make the boiler run more secure and reliable.



Lower NOx Emission

(a) It adopts three pass structure, hot combustion gases pass through long, small-diameter tubes three times, absorbing heat as much as possible;

(b) The large capacity combustion chamber (furnace) design ensures the fuel fully burned, and the smoke spread evenly to the NOX emissions to 35-200mg / m, clean and environmentally friendly.

Features

Short installation period, save space

The use of quick-loading structure and the whole boiler design in a very strong steel base to make installation and transportation easily, save the occupied space of the boiler room.



ASME standard

ASME(American Society of Mechanical Engineers)

It has been estimated that over 100 countries accept the ASME BPVC as a means of meeting their government safety regulations. Kingthai steam Boiler holds ASME certification, with large-scale power station boiler project total package qualification can provide customers a full range of products and services.

Parameters

Model

Rated evaporation

capacity (t/h)

Rated steam

pressure (Mpa)

Thermal efficiency

(%)

Fuel consumption

Overall dimension

(m)

Weight

(t)

Body Heating

Area (m2)

Light oil (Kg/h)

Natural gas (Nm³/h)

WNS1-0.7/1.0-Y(Q)

1

0.7/1.0

>90

66.5

75

3.6×2.0×2.0

4

25

WNS2-1.0/1.25-Y(Q)

2

1.0/1.25

>90.2

133

150

4.8×2.5×2.46

8

60

WNS4-1.0/1.25-Y(Q)

4

1.0/1.25

>91

266

300

5.8×2.85×2.8

13

113

WNS6-1.25/1.6-Y(Q)

6

1.25/1.6

>91.5

399

450

7.25×3.1×3.15

19

181

WN8-1.25/1.6-Y(Q)

8

1.25/1.6

>91.6

532

600

7.45×3.26×3.2

22.6

190

WNS15-1.25/1.6-Y(Q)

15

1.25/1.6

>91.8

997

1125

8.7×3.7×3.5

34

346

WNS20-1.25/1.6-Y(Q)

20

1.25/1.6

>92

1204

1418

10×3.6×4.0

45

467

Note: Parameter is for reference only, we can design the boilers based on customers’ needs.
